SpongeBob's Power Management System

[davidbrady]

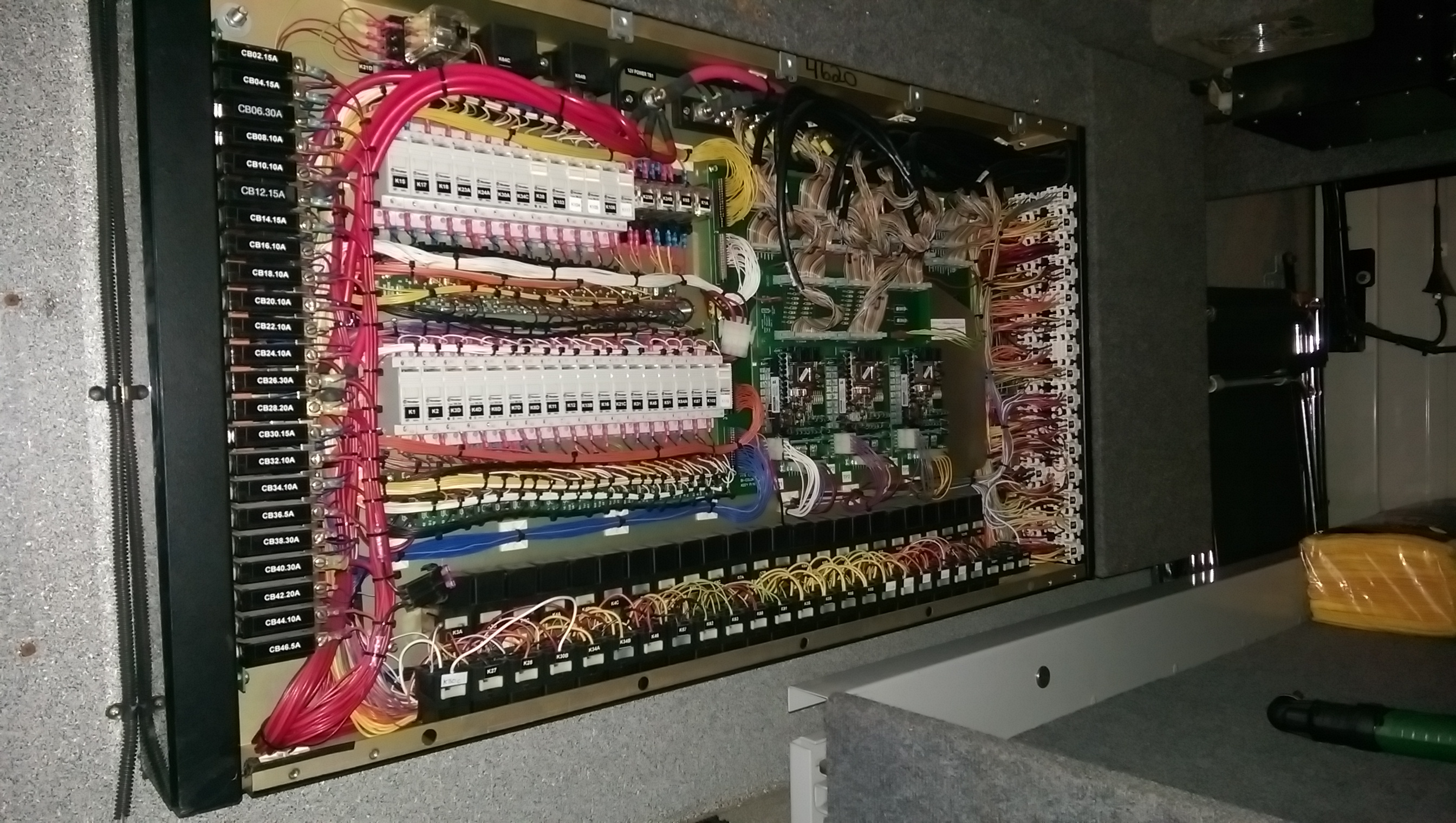

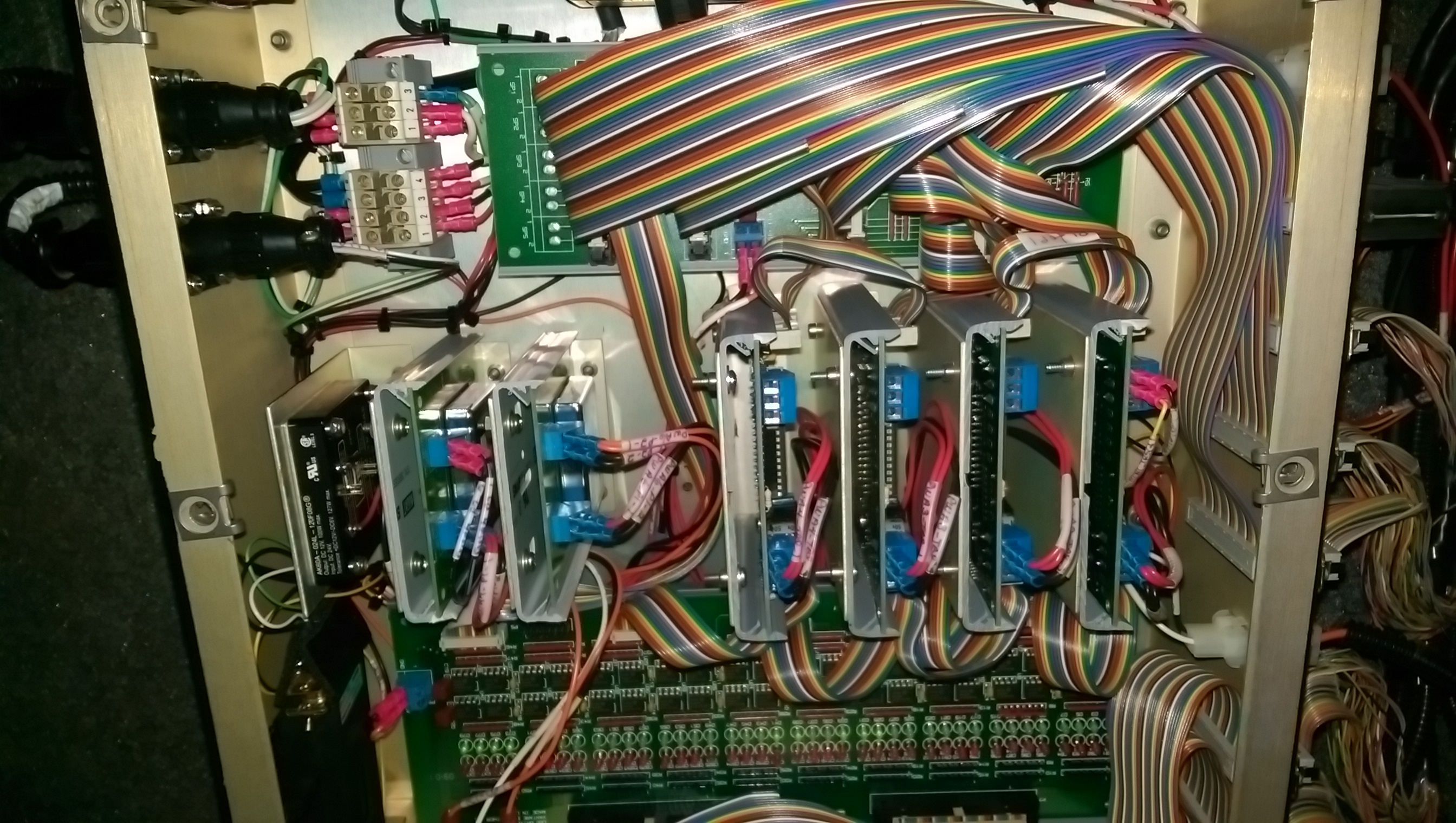

Thought you guys might enjoy seeing some of the circuitry behind this system:




Hey Chuck,
