Inverter main fuse
11-07-2014, 01:24 (This post was last modified: 11-07-2014 01:28 by Arcticdude.)
Post: #1
Inverter main fuse
I recently popped an inverter fuse. Turns out mine are a Shawmut Ampsurge A13X250 250a fuse. This crosses to a Bussmann 4XC83 from Grainger. $68 plus tax each. I haven't yet mounted the new one, but it appears to be very close in all dimensions and should be an easy replacement.

John Mace
06 450LXi bigger bird
living in the wild hinterlands of the north
free to roam without the man getting me down
Find all posts by this user
Like Post Quote this message in a reply
11-07-2014, 01:35
Post: #2
RE: Inverter main fuse
John,

What loads are you running that require over 3000W of power?

david brady,
'02 Wanderlodge LXi 'Smokey' (Sold),
'04 Prevost H3 Vantare 'SpongeBob'

"I don't like being wrong, but I really hate being right"
Find all posts by this user
Like Post Quote this message in a reply
11-07-2014, 11:01 (This post was last modified: 11-07-2014 11:05 by rrueckwald.)
Post: #3
RE: Inverter main fuse

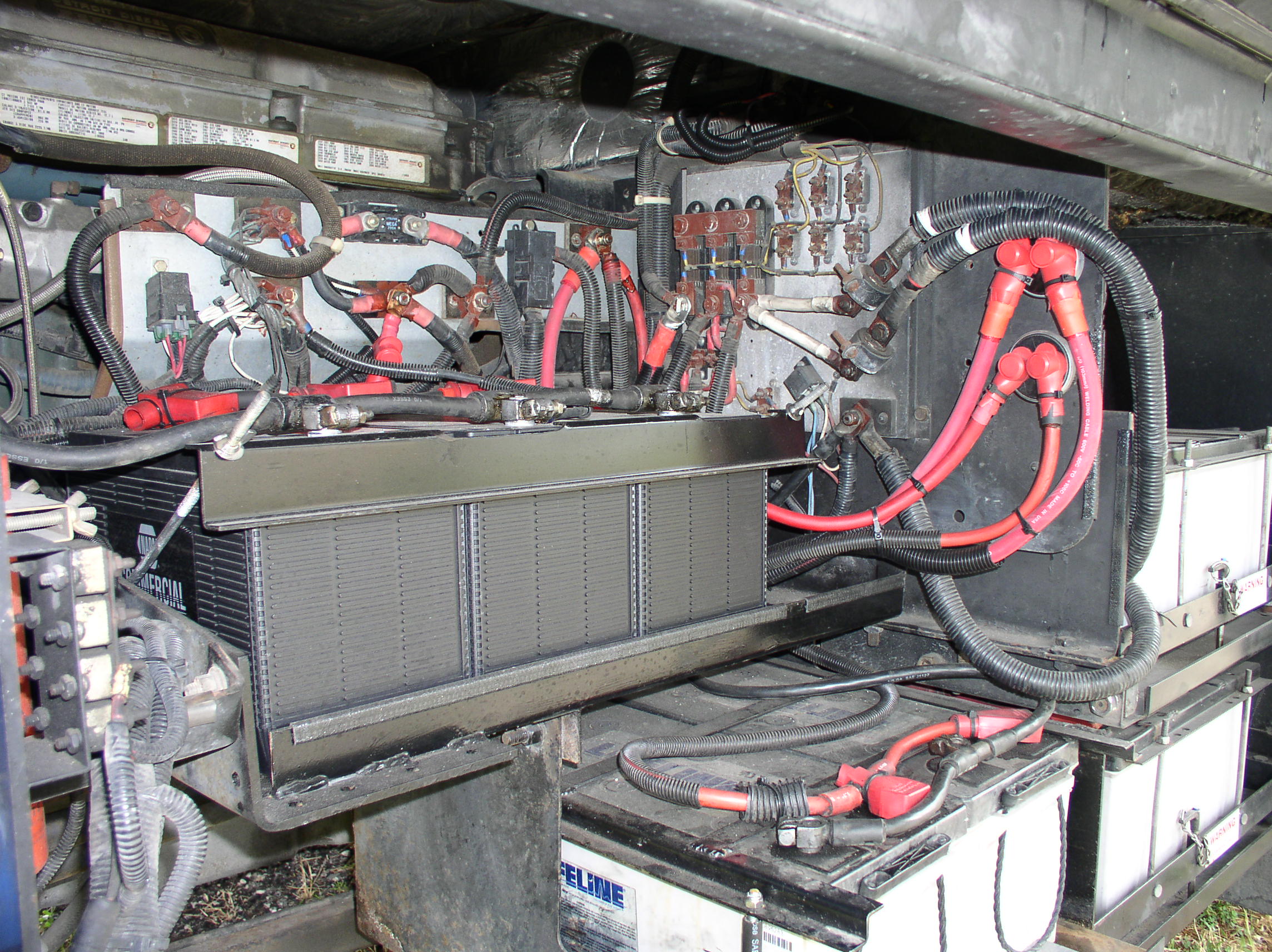

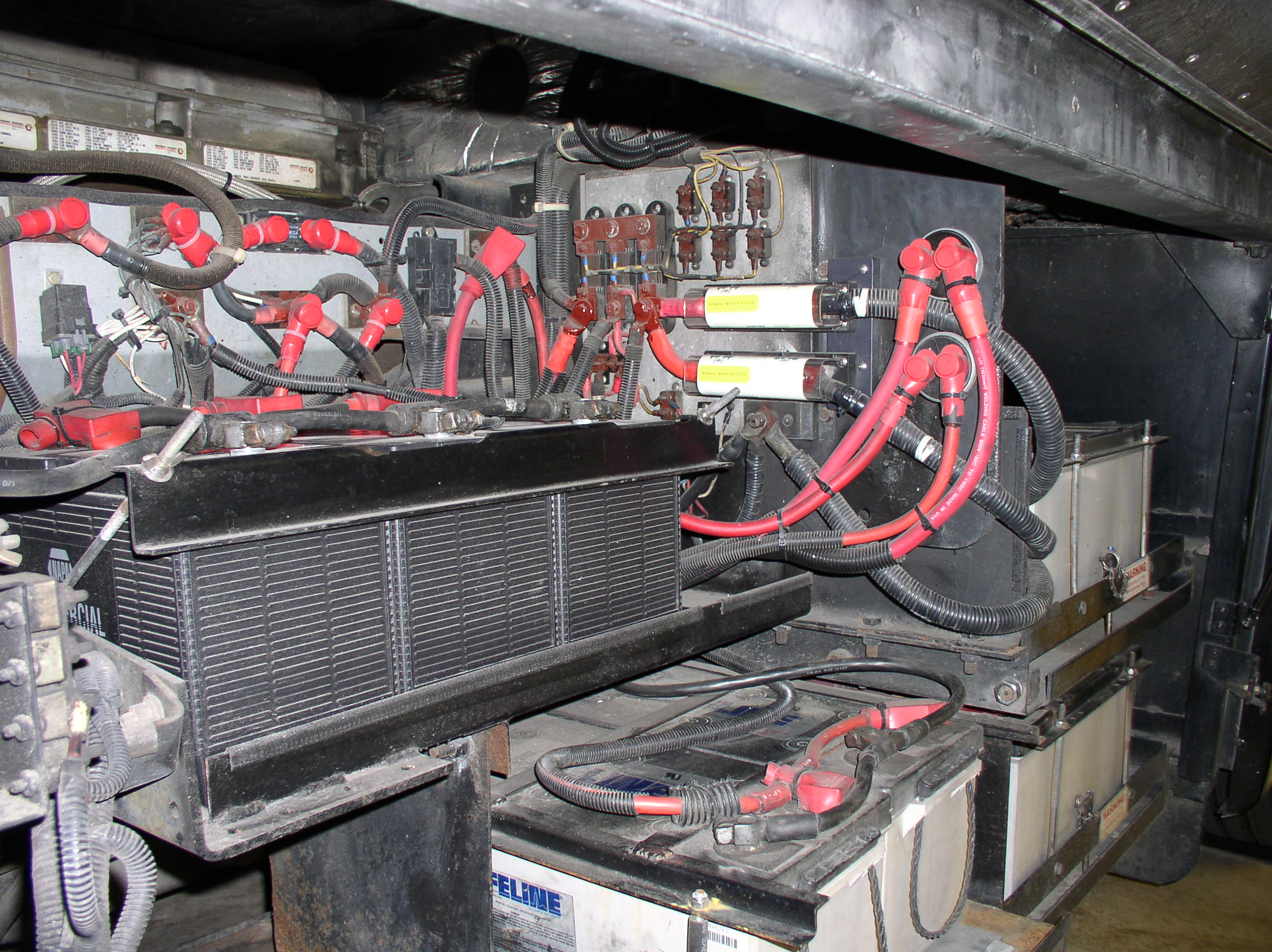

İmage İmage If you are replacing a fuse, and even if you are not, add the proper fuse holder. BB used a piece of rubber and a metal clamp that is a dead short to the battery if it comes just a little loose. Pix attached.

Again, while you are at it, install a rubber cover over the back of thee hot jump terminal. It is inviting a massive spark if you happen to ground it with a wrench.

Ron & Dorinda Rueckwald
2000 LXi, Single Slide
Summer in St. Joseph, MI
Winter in St. Petersburg, FL
Find all posts by this user
Like Post Quote this message in a reply
11-09-2014, 15:45 (This post was last modified: 11-09-2014 15:47 by Arcticdude.)
Post: #4
RE: Inverter main fuse
(11-07-2014 01:35)davidbrady Wrote:  John,

What loads are you running that require over 3000W of power?



Duh!! The margarita machine!! What else!! Big Grin Seriously, the chargers come back through these fuses on mine.



Good points, Ron. I'll have to study mine a little to see how to do that properly.

John Mace
06 450LXi bigger bird
living in the wild hinterlands of the north
free to roam without the man getting me down
